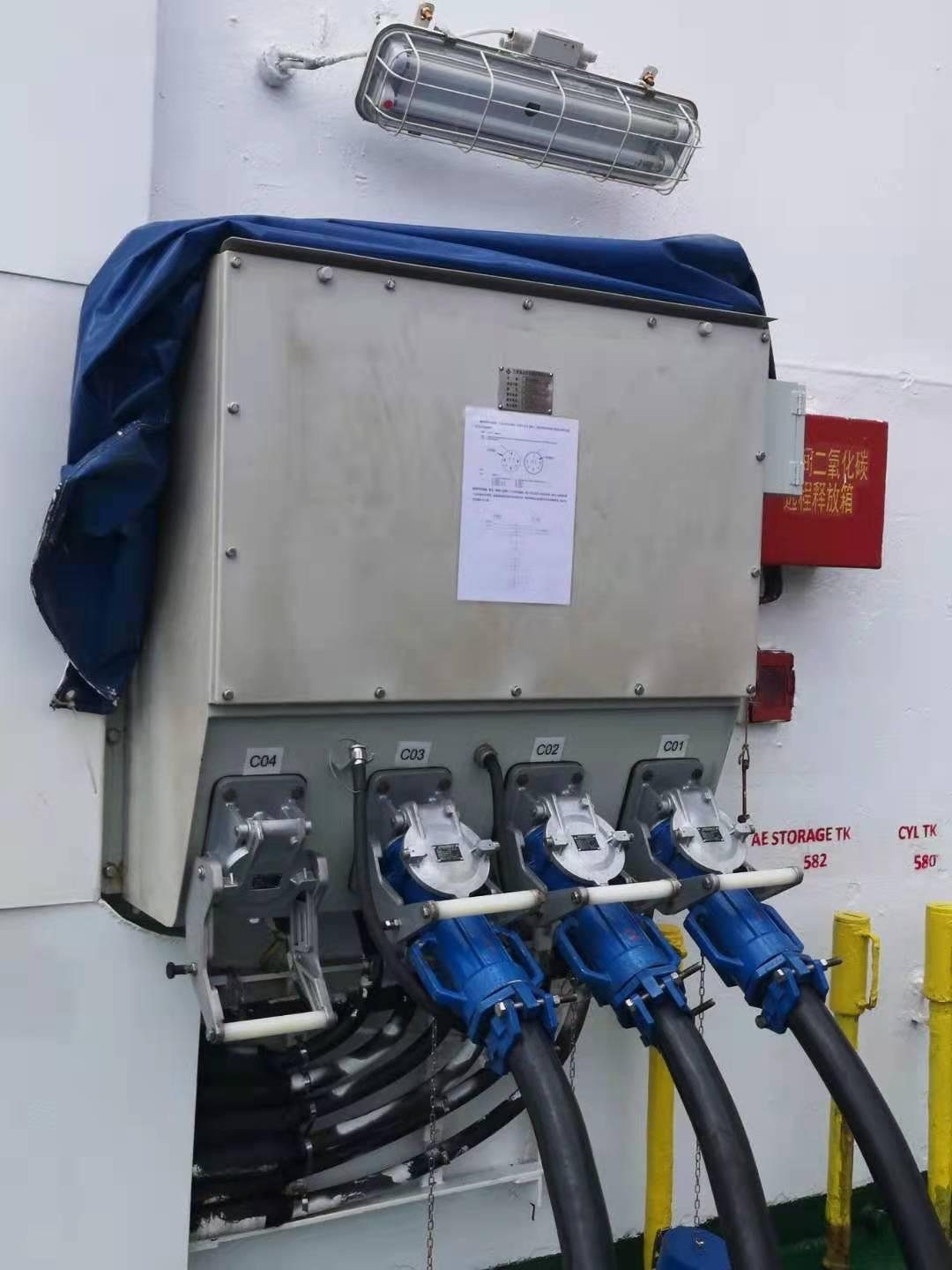

HV & LV Shore Connection Box
BFMP series Shore Connection Box is used to connect the shore power to the ship when ship docked. Generally it has the protection for under-voltage, overload and short-circuit, as well as the indication for phase sequence. Due to the client's requirement, it can also equipped with additional functions such as automatic change-over when reverse phase connection,measuring of voltage and current, guage of Kwh etc.
? Complies with IEC/ISO/IEEE and Classification Society standards, with optical fiber
communication standards
? The plug and socket can be used for mutual connection with other brand products that meet IEC standards
? Support the connection of container ships, bulk carriers, cruise ships, passenger rolling and other different types of ships
Technical Features
|
Operating Voltage |
440V,7200V,50Hz/60Hz |
|
Power Capacity |
Customisable to suit any application 200kVA-2MVA |
|
IP Rating |
Plug and socket protection class IP66 |
|
Operation Environment |
-25°C ~60°C,Relative humidity: ≤95%,Altitude≤1000m |
|
Specification |
Equipped with overload, short circuit protection, voltage and current indication, phase sequence detection, emergency stop button, operation indicator light, heating and de humidification device,Communication interface, electrical and mechanical interlock |
|
Conditioned |
Anti-condensation, oil mist, smoke and other measures |
|
Form |
Wall - mounted, vertical, horizontal |
|
Approvals |
Complies with IEC/IEEE and classification society requirements |
Onboard Product Overview
|

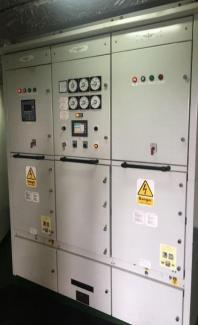

Equipment |
Shore Power Control Panel |
|
Operating Voltage |
400V/440V,50Hz/60Hz |
|
Power Capacity |
Customisable to suit any application ( 250A---2000A) |
|
IP Rating |
IP22 |
|
Specification |
automatically switch shore power and ship power without disturbance. Equipped with voltmeter, ammeter, multifunction meter, insulation meter, synchronous meter emergency stop and other devices |
|
Operation Environment |
-25°C ~60°C,Relative humidity: ≤95% |
|
Conditioned |
Anti-condensation, oil mist, smoke and other measures |
|
Approvals |
Complies with IEC/IEEE and classification society requirements |
|
Equipment |
HV Access Cabinet |
|
Operating Voltage |
6000V/6600V , 50Hz/60Hz |
|
Power Capacity |
Customisable to suit any application( 630A-2500A) |
|
IP Rating |
IP22 |
|
Specification |
Incoming cabinets * 2, Connecting control cabinet*1, Equipped with comprehensive protection, voltmeter, ammeter, multifunction meter, PLC, touch screen, emergency stop button ,etc. |
|
Operation Environment |
-25°C ~60°C,Relative humidity: ≤95% |
|
Conditioned |
Anti-condensation, oil mist, smoke and other measures |
|
Approvals |
Complies with IEC/IEEE and classification society requirements |
